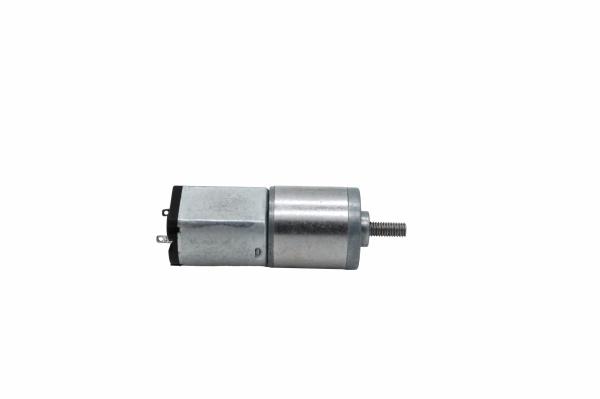

Service Robot Motor DC Spur Gear Motor Chinese Wholesale 3V/6V Mini DC Motor
Product Feature:
Very sturdy construction inside and outside. The outside shell is well build and has excellent access
The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation (CW / CCW);
The reducer output shaft arranged vertically with the motor shaft, whole motor output.
The reducer output shaft arranged vertically with the motor shaft, whole motor output shaft relatively-short than general gear motor, widely used to be installed the dimensions requirements strictly occasion.
1. Description:
Product Highlights
- 3V/6V DC motor
- 16MM dc spur gearbox
- shaft can be customized
- Reduction ratio can be customized
Motor Data:
| Motor Model | Rated Voltage | No-load | Load | Stall |
| current | speed | current | speed | torque | output | torque | current |
| V | A | rpm | A | rpm | kg.cm | W | Kg.cm | A |
| JQGM-030003850 | 3 | ≤0.075 | 8500 | ≤0.28 | 6550 | 0.005 | 0.34 | ≥0.02 | ≥0.6 |
| JQGM-03000610400 | 6 | ≤0.065 | 10400 | ≤0.19 | 7800 | 0.005 | 0.39 | ≥0.018 | ≥0.4 |
Gearbox Data:
| Reduction stage | 3 | 4 | 5 | 6 | 7 |
| Reduction ratio | 10K,14K | 23K,28K,32K,40K | 45K,56K ,65K,79K,91K,112K | 130K ,159K,183K, 224K,257K,315K | 365K,448K,
515K,631K,725K,
889K |
| Gearbox length | 11 | 12.5 | 14 | 15.5 | 17 |
| Gearbox efficiency | 73% | 65% | 59% | 53% | 48% |
2. Mechanical Dimension:MM
3. Typical Applications
IA:
Smart Lock,Smart closetool,Auto-curtain,Robot vacuum,Dishwasher
Office Equipment:
Cash registers, printer, Paper shredder ,Projector
Medical Wquipment:
Trolley, Adjustable bed ,Medical pump ,Blood shaker
Business Equipment:
New retail device ,Vending machine ,Car zip,smart lamp
Industrial Equipment:
Automatic valve ,Automatic door switch
Personal care :
Hairclipper,Massage chair ,hair curler
4. Terms of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Cartons /Pallets |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS
for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
